Accueil boutique > Réseaux > LAN – Réseau local > Convertisseur de média > De bureau, haut débit > MultiPower Miniature Gigabit Ethernet (1000-Mbps) Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber SFP
LGC135A-R3: Mode selon le SFP, 1 RJ-45 10/100/1 000 Mbits/s, (1) SFP (1000M), Connecteur selon SFP, Distance selon SFP, AC/USB/opt chassis

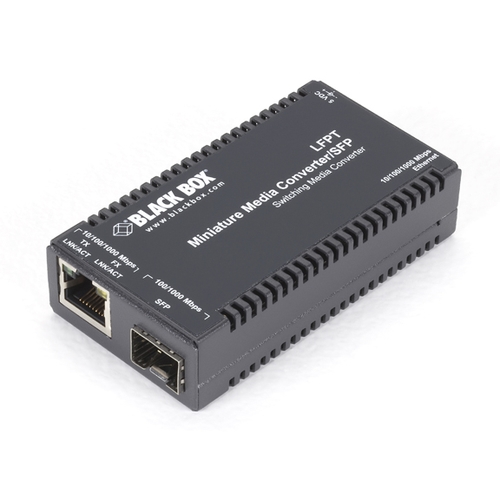

Photo non contractuelle
LGC135A-R3: Mode selon le SFP, 1 RJ-45 10/100/1 000 Mbits/s, (1) SFP (1000M), Connecteur selon SFP, Distance selon SFP, AC/USB/opt chassis


MultiPower Miniature Gigabit Ethernet (1000-Mbps) Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber SFP


Extend LAN reach with fiber media converters.


  • Compliant to EN62368
  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size; measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

  Produit       Code   Prix unitaire   Quantité
Mode selon le SFP
1 RJ-45 10/100/1 000 Mbits/s
(1) SFP (1000M)
Connecteur selon SFP
Distance selon SFP

AC/USB/opt chassis
  MultiPower Miniature Gigabit Ethernet (1000-Mbps) Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber SFP
MultiPower Miniature Gigabit Ethernet (1000-Mbps) Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber SFP
  LGC135A-R3
Please order the SFPs separately

This replaces LGC135A-R2

Accessoires

  Produit     Code   Prix unitaire   Quantité

  SFP, 1250-Mbps, SGMII - 100 m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
Adaptateurs et cordons adaptateurs
  Cordon d'alimentation USB
Cordon d'alimentation USB
  LHC021A
  Châssis PowerTray MiC - Rackmount power tray, 18 logements, Internal AC power supply
Châssis PowerTray MiC
  LHC018A-AC-R2
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - Multimode 850 nm, LC, 550 m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2 km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - Monomode 1 310 nm, LC, 10 km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - Monomode 1 310 nm, LC, 30 km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
  SFP, 1250-Mbps, température étendue, LC Simplex - 10 km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, température étendue, LC Simplex
  LFP420
  SFP, 1250-Mbps, température étendue, LC Simplex - 10 km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, température étendue, LC Simplex
  LFP421
  SFP, 1250-Mbps - LC, MM 850nm, 550 m
SFP, 1250-Mbps
  LFP441
  SFP, 1250-Mbps - LC, Monomode1310nm, 20 km
SFP, 1250-Mbps
  LFP442
  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - Multimode 850 nm, LC, 2 km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2 km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - Monomode 1 310 nm, LC, 30 km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403

  • Autosensing copper ports make them perfect for migrating networks.
  • Accepts 1250-Mbps SFPs.
  • Use as standalone media converters or rackmount in the optional PowerTray.
  • Powered by its universal AC power supply, a PC's USB port, or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • Easy to install. Just plug and play.
  • Compact size.
  • Uses inexpensive CAT5e twisted-pair cable on the copper side.
  • Features Link Fault Pass-Through (LFPT).


This Black Box Multipower Miniature Media Converter links 10-, 100-, or 1000-Mbps copper segments to 1000 Mbps fiber cabling. An SFP port enables you to use an SFP to link the converter to fiber cable. Choose from multimode and single-mode SFPs. With a single-mode SFP, the media converter supports distances up to 80 kilometers (49.7 mi.), depending on the model you order. For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (which plugs into a PC's USB port and is sold separately), or through the optional rackmount PowerTray (sold separately). The PowerTray provides power for up to 18 converters in only 5U of rack space. Rackmount ears are included.
